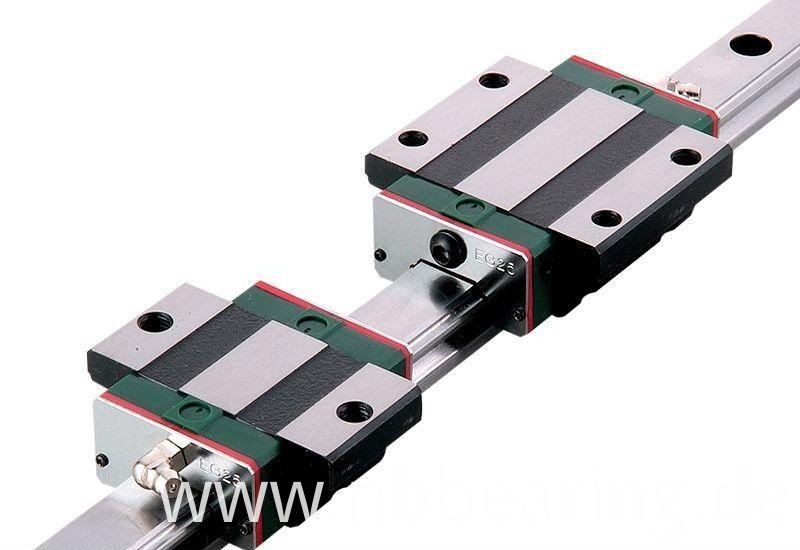

A Linear system consisting of a steel linear rails with induction hardened raceways and high precision radial
Ball Bearing sliders, also made of hardened steel.
Linear Guide Bearing AGH..SA(CA) AGW..SA(CA) Series are affordable and easy to install on all types of surfaces, including non-machined surfaces.
Three
Guide Bearing AGH..SA(CA) AGW..SA(CA) Series, T, K and U profiles, allow for compensation of inherent misalignment, e.g. machine tool housing
Internal raceways ensure compact dimensions
Two slider types: N-series with aluminum die-cast bodies and C-series with steel bodies
| Type | Size of the components (mm) | Size of the blocks (mm) | Weight |
| H | H1 | N | W | B | B1 | C | Blocks (kg) | Slide shaft (kg/m) |
| AGH 15SA | 24 | 5 | 9.5 | 34 | 26 | 4 | - | 0.12 | 1.43 |
| AGH 15CA | - | - | - | - | - | - | 26 | 0.17 | - |
| AGH 20SA | 28 | 6 | 11 | 42 | 32 | 5 | - | 0.2 | 2.16 |
| AGH 20CA | - | - | - | - | - | - | 32 | 0.29 | - |
| AGH 25SA | 33 | 7 | 12.5 | 48 | 35 | 6.5 | - | 0.34 | 2.95 |
| AGH 25CA | - | - | - | - | - | - | 35 | 0.51 | - |
| AGH 30SA | 42 | 10 | 16 | 60 | 40 | 10 | - | 0.57 | 4.76 |
| AGH 30CA | - | - | - | - | - | - | 40 | 0.88 | - |
| AGW 15SA | 24 | 5 | 18.5 | 52 | 41 | 5.5 | - | 0.15 | 1.43 |
| AGW 15CA | - | - | - | - | - | - | 26 | 0.23 | - |
| AGW 20SA | 28 | 6 | 19.5 | 59 | 49 | 5 | - | 0.34 | 2.16 |
| AGW 20CA | - | - | - | - | - | - | 32 | 0.36 | - |
| AGW 25SA | 33 | 7 | 25 | 73 | 60 | 6.5 | - | 0.44 | 2.95 |
| AGW 25CA | - | - | - | - | - | - | 35 | 0.68 | - |
| AGW 30SA | 42 | 10 | 31 | 90 | 72 | 9 | - | 0.72 | 4.76 |
| AGW 30CA | - | - | - | - | - | - | 40 | 1.16 | - |
Lubricated-for-life
Roller Bearings Resistant to dirt and other common debris
Suitable for applications with speeds up to 9 m/s
Rail width sizes: 18mm, 28mm, 35mm, 43mm and 63mm
Adjustable preload
The raceways are located inside a C profile, protected from dirt. The linear rail with shaped raceways (T), the linear rail with flat raceways (U) and the linear rail with mixed shaped raceways (K) may be combined differently for all applications where parallelism errors on one or both planes must be compensated.
Main fields of application for Compact Rail
Linear Bearings AGH..SA(CA) AGW..SA(CA) Serie:
Aerospace
Railway
Medical
Industrial machinery
Packaging
Automation
Logistics
