Rod Ends Spherical Bearings SQD Series with shank,

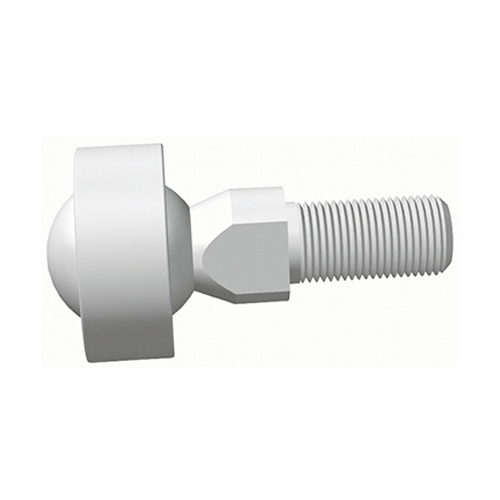

Ball Joint Spherical Bearings SQD Series just like self-aligning ball joint bearings, are mechanical devices used to connect perpendicular parts.
Advantages Thanks to their structural features, RunFine
Rod Ends Spherical Bearings SQD Series with shank allow the transmission of alternate forces as well as angular and oscillating motion at reduced speeds, thus mitigating angular flexion and radial shifting.
Bearing
number |
Dimensions |
mm |
Static load
ratings
kN |
Weight
≈kg |
| d1 | d2 | D | rs | α°
≈ |
| SQD5 | M5 | 9 | 16 | 0.3 | 25 | 2 | 0.014 |
| SQD6 | M6 | 10 | 18 | 0.3 | 25 | 3.2 | 0.021 |
| SQD8 | M8 | 12 | 22 | 0.3 | 25 | 5.7 | 0.042 |
| SQD10 | M10×1.25 | 14 | 26 | 0.3 | 25 | 9.2 | 0.067 |
| SQD12 | M12×1.25 | 17 | 30 | 0.5 | 25 | 14 | 0.108 |
| SQD14 | M14×1.5 | 19 | 34 | 0.5 | 20 | 19 | 0.167 |
| SQD16 | M16×1.5 | 22 | 38 | 0.5 | 20 | 26 | 0.238 |
Special technical features The RunFine
Rod Ends Spherical Plain Bearings SQD Series range includes the "L" shaped ball joint bearing with dust guard. This is particularly suited for use on moving parts, steering elements and axles, or wherever there is a need for self-alignment.
Product Categories : Spherical Plain Bearings > Ball Joint Rod Ends
